Features
ㆍThe FMS system is a ideal answer to integral training in industrial automation. It is fully modular and flexible equipment in keeping with industrial reality.
ㆍAs the FMS(Flexible Manufacturing System) all in One system, the technology included in this system of assembly, assembly process that allow the user to develop the professional skills required by today,s automated industry.

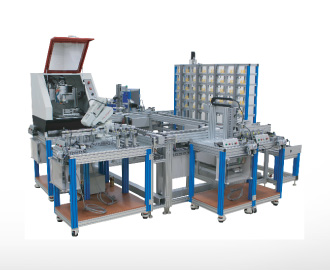

* FMS(Flexible Manufacturing System)
Factory Automation (Factory Automation) is a technology that is the base system of production process that is controlled by the machine, numerical control machines, automatic equipments, robotics and CAD / CAM with the industrial communication network and PLCs, HMI and SCADA.

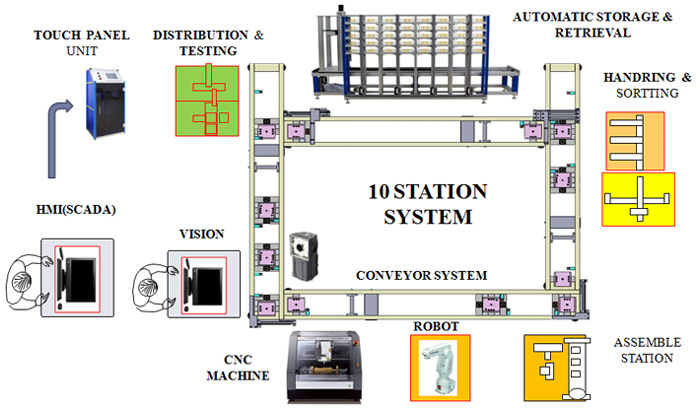

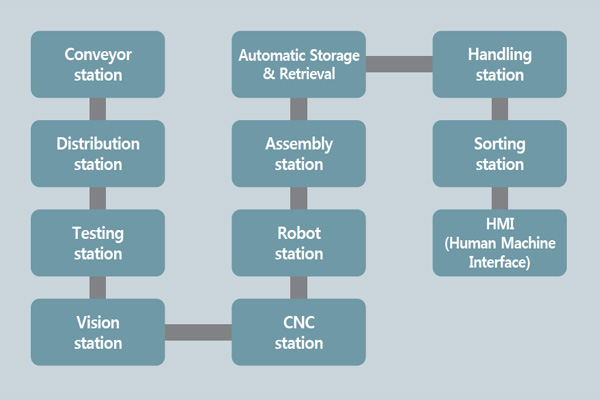

Consists of a total 10 process and industry FMS perfect reproduction.





Conveyor system / Model : CS-100
1) Conveyor
- One direction conveyor
- DC motor
- Aluminum Profile support
- Pallet
- Dimension of Pallet: 160 x 160mm
2) Controller
- Pallet identification
- PLC
- Fieldbus or Ethernet TCP/IP interface

Distribution station / Model : DS-101
- Source work piece is sequentially distributed from storing magazine.
- It is transferred to next station by rotary cylinder and vacuum suction.
- Size: 500(W)×500(D)×1000(H)mm
- weight: 40 kg
- main power supply: AC 220V, 60Hz
- operating voltage: DC 24V, 3A
- operating compressed air supply: 5‾6bar
- Electrical Logic: PNP

Testing station / Model : TS-107
- Material of work piece is identified by test sensor.
- After testing height of the part, wrong work piece is ejected and the rest are conveyed
- Size: 500(W)×500(D)×1300(H)mm
- weight: 43 kg
- main power supply: AC 220V, 60Hz
- operating voltage: DC 24V, 3A
- operating compressed air supply: 5‾6bar
- Logic: PNP

Vision Station / Model : VS-104
- Image processing: real color
- Light: Pulse Lights, White
- Measurement trigger: External trigger (single shot, revolver)
- Inspection Items: 5
- Power requirements: 24V DC, 2.4A
- Operating temperatures: 0~50°C
- Image Sensor: 1/3inch CMOS, 752*480 pixel resolution
- Full frame rate: 75fps, partial frame acquisition supported
- Electronic shuttering: 1/250 - 1/30,000 second exposure times
- Optics: CS mount standard, C mount-capable with optional adapter
- External port: RJ-45 for 10/100Mbps Ethernet communications
- 10-pin keyed modular connector for power and digital I/O
- Digital I/O: 24V DC regulated 10 configurable inputs and NPN (current sinking) inputs
- PNP (current sourcing) outputs. Active high signals. Inputs can sink up to 1.5mA and outputs source a maximum of 50mA

CNC station / Model : CS-102(TINY CNC SC)
- Dimensions of working table: 270 (W) x 280 (D) mm
- Operating limitation: 200 (X) x 240 (Y) x 90 (Z) mm
- Operating speed: 0.1~70 mm/sec
- Motor: Micro Step Motor
- Spindle Motor speed: DC Motor 12,000rpm
- Operating voltage: AC 220V±10%, 50/60 Hz
- Power consumption: 2.1 A Approx. 210W
- Communication: USB 1.1
- Extension dimensions: 700(W) x730(D) x 750(H) mm
- Environment: 5 ~ 40°C, humidity: 35 ~ 80%

Robot station / Model : RS-105(RV-2SD)
- The assembly station(with Robot) is used to assemble a work piece cover
- The separating module allows the use oh 2 or 3 different cover
- Input: AC 220V, 60Hz
- Output: DC 24V, 3A
- Operating pressure : 5 ~ 6bar
- Logic: PNP

Assembly station / Model : AS-108
- The assembly station(with Robot) is used to assemble a work piece cover
- The separating module allows the use oh 2 or 3 different cover
- size: 500(W)×500(D)×1000(H)㎜
- weight: 60 kg
- main power supply: AC 220V, 60Hz
- operating voltage: DC 24V, 3A
- operating compressed air supply: 5 ~ 6bar

Automatic Storage & Retrieval / Model :AS/RS-109
- Weight: 55 kg
- Input: AC 220V, 60Hz
- Output: DC 24V, 3A
- Pressure : 5 ~ 6bar
- Logic: PNP

Handling Station / Model : HS-106
- Universal 2-axis handling device for Pick & Place task.
- Work pieces can be lifted from one level to another
- weight: 43 kg
- main power supply: AC 220V, 60Hz
- operating voltage: DC 24V, 3A
- operating compressed air supply: 5 ~ 6bar

Sorting station / Model : SS-103
- A transferred work piece is sorted by sorting cylinder according to its material on conveyor module.
- size: 750(W)×750(D)×950(H)㎜
- weight: 45 kg
- main power supply: AC 220V, 60Hz
- operating voltage: DC 24V, 3A
- operating compressed air supply: 5 ~ 6bar

HMI (Human Machine Interface).

Basic function
1) Real-time database management
2) Alarm
3) Trend analysis
4) Making a report
5) Data logging
6) Scheduler
7) Network
8) Creating monitoring/control screen
9) Graphic effect
10) I/O device

HMI PC
- CPU: intel compatible
- Interface: Ethernet, USB
- HDD: 300G or more
- Windows XP or Windows 7


Accessories
ㆍAC Power Cord : 1ea
ㆍUser Manual : 1 copy
