Features
ㆍThe Autobase has been developed as the Windows OS compatible. This is an automation tool for the monitoring and control fields.
ㆍWe implements this S/W in the computer which is connected to the remote automation equipments (PLCs/controllers), and this computer monitors and controls the status of every machines and also measurements/parameters which are linked with the remote automation equipments.
ㆍThe Autobase consists of all the features required for the automation, especially this includes the basic functions of the HMI/SCADA, and this could link to databases and web server. The Autobase provides the ideal solution for automation fields of any kind.
Function
ㆍAutobase is a HMI/SCADA software based on MS Windows XP/2003/Vista/2008/7
ㆍAutobase provides dynamic field monitoring with transparent animation graphic objects in real time.
ㆍThe Autobase's library-service makes the use(sharing/buying/selling) of libraries convenient on the Internet.
ㆍThe Autobase enables easy field monitoring/control over the Internet using the web server.
ㆍMonitoring/control through Silverlight creates a actual ubiquitous computing environment that is not limited by the type of web browsers and platforms.
ㆍAutobase Supports diverse communication interfaces(RS-232, RS-422, RS-485, Embedded card type, TCP/IP, UDP/IP, DDE, OPC, ODBC, OLEDB, USB etc.).
ㆍIt enables a single computer to monitor and control more than 100,000 points of tags smoothly.(4giga of tags covered/less than 200,000 points recommended).
ㆍIt enables a single computer to connect diverse types of devices and to monitor/control them those simultaneously(more than 400 types of protocols could be supported).
ㆍIt supports diverse control blocks(demand control, annual schedule control, etc.).
ㆍIt includes various development tools(module editor, picture editor, report editor, animation editor, tag editor, communication editor, picture library, etc.) to build automation systems.
ㆍReal-time Trend, Historical Trend, XY and Milli-Data Trend features support efficient data management.
ㆍThe data can be shared with external databases through ODBC/OLEDB.
ㆍWith each computer configured as a network, a Distributed Control System(DCS) can be built easily.
ㆍScript languages similar to C/C++ are supported (individual script provided for each object).
Applied Fields
| As of 2009, Autobase was adopted in over 6000 industrial fields. All systems are in stable operation. |
|||
|---|---|---|---|
|
ㆍWaterworks Treatment |

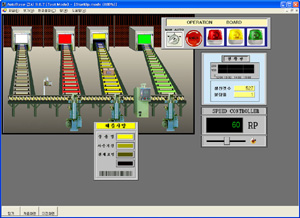

ㆍFactory Automation |
ㆍHMI Training Systems |
ㆍWater Quality Measurement |

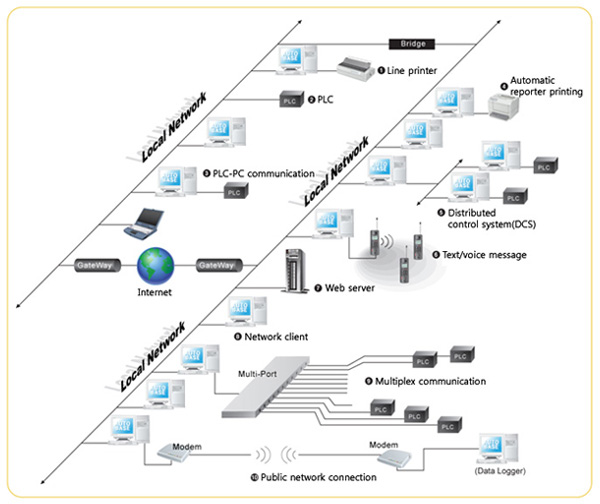

AutoBase Local Network
① Line Printer : Prints an alarm issued by Monitoring Program. Line printer directly performs printing from a printer port without the assistance of Windows.
② PLC(Programmable Logic Controller) : When a communication module supports the network, all stations can be connected to the PLC.
③ PLC-PC Communication : RS-232, RS-422, RS-485, Internal card, TCP/IP. UDP/IP, DDE, DPC, ODBC, OLEDB, USB, etc.
④ Automatic Reporter Printing : Current values and minute/hcurly/daily/weekly monitoring data edited using Reporter Editor or Excel, and options available for printing at any time or at designated time.
⑤ Distributed Control System(DCS) : Each local system monitors and controls its own area only, and the server system manages the data form local systems comprehensively.
⑥ Text and Voice Message : Text and voice messages are sent when an alarm is issued.
⑦ Web Server : Monitoring/control performed over the Internet via a web server (Silverlight, mobile code execution, HTML)
⑧ Network Client : Without connection to a PLC, monitoring and control can be performed with connection to the autobase system.
⑨ Multiplex Communication : Up to 256 different PLCs or controllers can be linked to a single system.
⑩ Public Network Connection : Connection to a data logger in a remote location supported via telephone connection.
Autobase Program Configuration : Editing Program
|

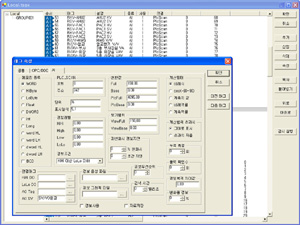

Tag Editor |
![]() |
|

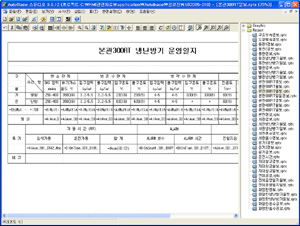

Report Editor |
|
|
Bitmap Editor |
|
|

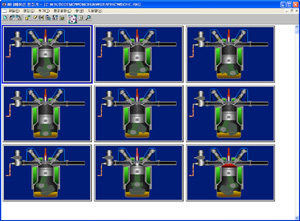

Animation Studio |
|
|

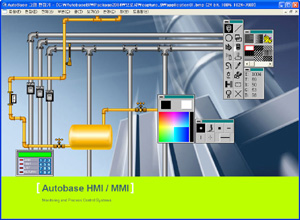

Graphic Module Editor |
|
Autobase Program Configuration : Monitoring Program
|

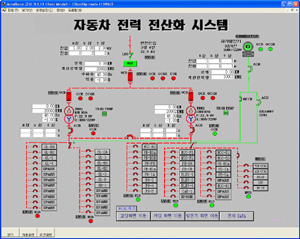

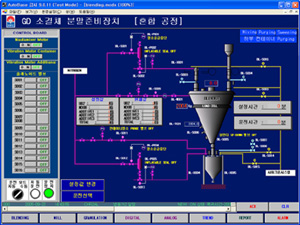

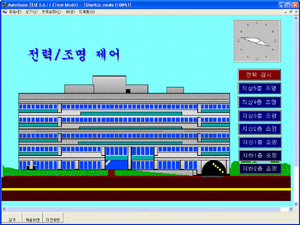

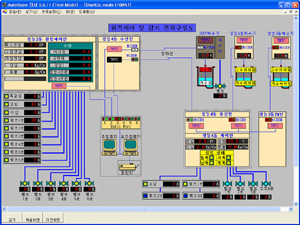

Graphic Monitoring |
![]() |
|

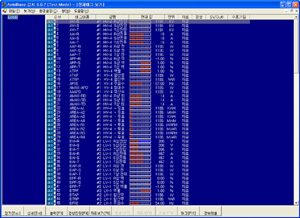

Entire Tag Monitoring |
|
|
Classified Tag Monitoring |
|
|

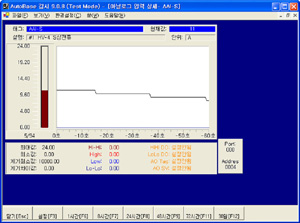

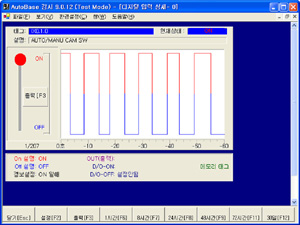

Detailed Monitoring |
|
|

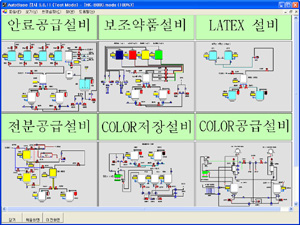

Navigation Map |
|
Autobase System Configurations Examples of Applied fields.
|

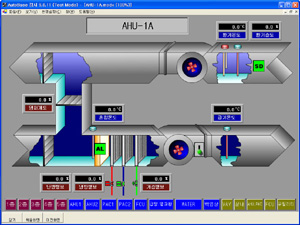

[ HVAC Control ] |
![]() |
|
[ Lighting Control ] |
|
|

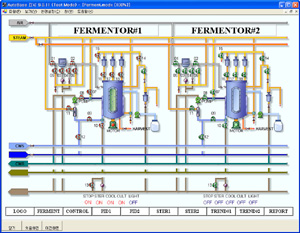

[ Fermenter Control ] |
|
|

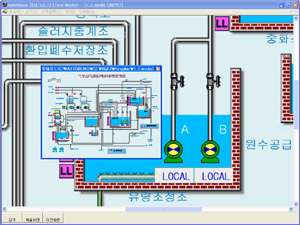

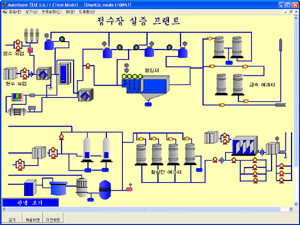

[ Waterworks Treatment ] |
|
|
[ Remote Monitoring ] |
|
|

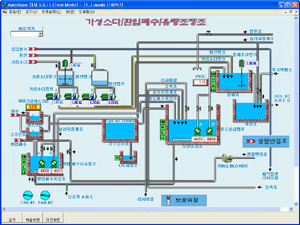

[ Waste Water Treatment ] |
|
|
[ Waste Disposal ] |
|
|

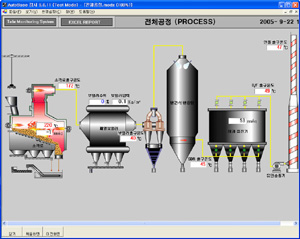

[ Papermaking Process ] |
|
|
