Wireless Communication & Antenna Trainer | CPE-TC5010

Feature/Function

Untitled Document

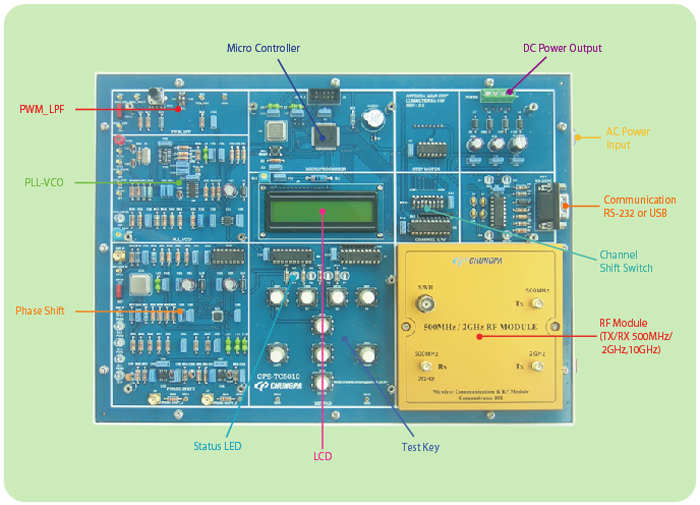

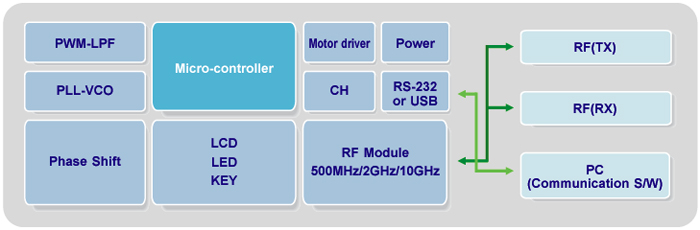

• 2-in-1 training system for antenna and wireless communication
• Standalone operation or PC dependent operation using an operation software
• Multi-channel RF sources: 500MHz / 2GHz / 10GHz

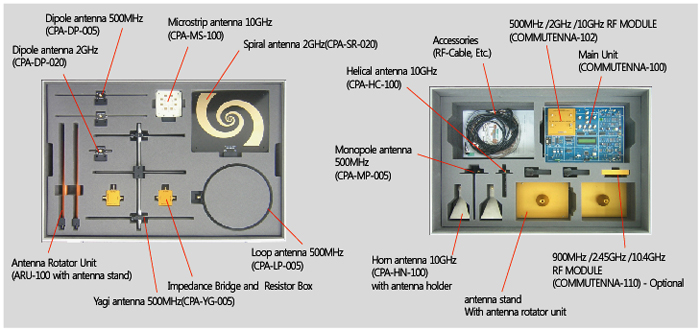

• Consists of various types of antenna such as Yagi, Dipole, Monopole and Microstrip
• Can practice PWM and PLL-VCO (Phase Locked Loop-Voltage Controlled Oscillator)
• Understanding the characteristics of various antennas and practicing frequency measurement and analysis

Specifications

product

RF Generator part	Frequency range	Standard 500㎒, 2㎓, 10㎓ (A-type) Optional 900㎒, 2.45㎓, 10.4㎓ (B-type)
	Power range	10mW Approx
	Modulation frequency	1㎑ ±3%
	Channel	500㎒/900㎒z(32CH)
	Output dBm	10dBm(Max)
	Output Impedance	50 Ohm(Nominal)
	Type of antenna	Yagi, Dipole, Loop, Monopole, Spiral, Helical, Horn, Micro strip etc.
Receiver & Main Controller	Angle step	400 steps (0.9˚/step)
	Control motor	2 Phase stepping motor
	Angle Range	0 ~ 360degree
	User Display	16 x 2 Text LCD back light
	User LED	5mm LED : 10ea
	Keys	Tack switch : 9ea
	PC interface and control	RS232C, 19200bps-8-N-1
	Channel Switch	8 bit dip switch
	PLL-VCO Lock	5mm Yellow LED
	EXT. Input	EXT-PWM, EXT-Freq(SMA-KHD)
	INT. Output	PWM, VCO, Phase Shift, Ref-Frequency
	AC Power Input	AC 90~240V / 50~60㎐
	DC Power output	DC -5V, +5V, +12V
Transmit part	Fixing(for polarized wave)	Horizontal/Vertical
Transmit part	ANT. Directional control	Manual
Receive part	Fixing	Horizontal/Vertical
Receive part	ANT. Directional control	Manual/PC interface for RS232C or USB

Options/Accessories

Untitled Document

• Power cord : 1ea
• Basic antenna : 8ea
• RF cable (SMA to SMA) [1.5 meter]: 1ea
• RF cable (SMA to SMA) [3 meter]: 1ea
• BNC-SMA cable [1.5 meter] : 2ea
• Motor cable : 1ea
• Serial cable : 1ea
• PC software CD : 1ea
• User's guide manual : 1ea
