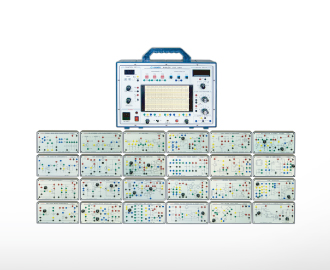

1) Experimental board custody bags
① Board capacity : 24EA
② Size : 380(W)×260(D)×130(H)mm
2) Experimental board (Total 24ea)
① Semiconductor chraceristic experiment (7ea)
ㆍM01 : Diode and Zener-diode Characteristic
ㆍM02 : Transistor and Common Emitter Ground Characteristic
ㆍM03 : FET and MOS-FET Characteristic
ㆍM04 : SCR Characteristic
ㆍM05 : UJT Characteristic
ㆍM06 : Application of SCR and Triac
ㆍM07 : LED and Photo Device Characteristic
② Semiconductor circuit experiment (5ea)
ㆍM08 : Base and Common Emitter Ground Amp
ㆍM09 : DC Amplifier
ㆍM10 : Complementary Amplifier
ㆍM11 : Differential Amplifier
ㆍM12 : Operational Amplifier Circuit
③ Electronic circuit experimental (12ea)
ㆍM13 : Active Filter Circuit (LPT, HPF, BPF)
ㆍM14 : Unregulated Power Supply
ㆍM15 : DC Voltage Regulator
ㆍM16 : Variable Voltage Regulator DC Power Supply
ㆍM17 : Tank Circuit and Resonance
ㆍM18 : LC Oscillator (Hartley, Colpuitt)
ㆍM19 : Crystal Oscillator
ㆍM20 : Wien Bridge Oscillator
ㆍM21 : Multivibrator (Ast, Mon, Bis) and Schmitt Trigger
ㆍM22 : Timer IC Application
ㆍM23 : Ramp generator
ㆍM24 : Modulation and Demodulation
④ Board size : 110(D)×200(W)×40(H)mm
3) Main Body
① DC Output
ㆍDC 3/5/6/9/12/15V Dual Output
② Decade Capacitor
ㆍ0.01[㎌] ~ 0.999[㎌] (3 Digits)
③ Decade Resistor
ㆍ1[㏀] ~ 15[㏀], 10[㏀] ~ 150[㏀]
ㆍ100[㏀] ~ 1.5[㏁] (Select by BCD 3EA)
④ AF Generator
ㆍ100[㎐] ~ 10[㎑] (In2-Range)
ㆍOutput --- 1[V]/10[V] (In 2 Range)
ㆍWaveform --- Sine and Square
⑤ Multi Tester (3½ Digital)
ㆍDC Voltage --- 2V/20V
ㆍDC Ampere --- 20㎃/200㎃
ㆍ4-level Range selector switch
⑥ AC Output : 30[V] CT (15[V]+15[V]) 0.1[A] Max
⑦ Variable Resistor : 1[㏀], 100[㏀] (each 1EA)
⑧ Switch : Slide, Push, Toggle (each 1EA)
⑨ Input Power : 220[V], 60[㎐]
⑩ Size : 380(W)×260(D)×130(H)㎜
⑪ Breadboard : 1개
ㆍSocket Tie-Point : 1260 point
ㆍBus Tie-Point : 300 point
