ㆍBuilt-in a large breadboard for designing complicated circuits
ㆍBuilt-in two FND indicators for 16 based number
ㆍBuilt-in a 5V/3A of power supply.
ㆍOver current protection
ㆍSelect waveforms output of 1Hz, 100Hz, 1kHz, 100Khz by square-wave generator.
ㆍCommon Mode conversion functions of indicator.
Various circuit experiments

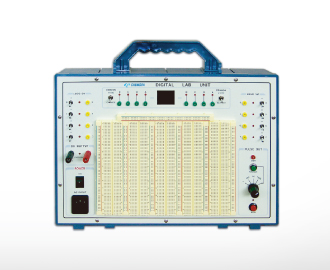

CPE-EO2140 allows not only digital circuits experiments but also uses in experiment of linear IC circuits or circuits using transistors.
Various functions and effective design
Logic Design Unit consists of various required peripheral devices for digital circuits experiments in main body. And location for attaching devices is designed for effective experiments.
Enough breadboards and built-in a power supply
