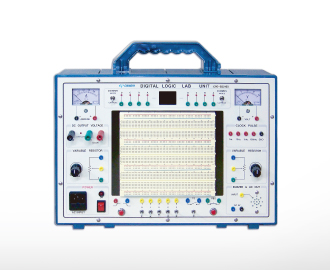

Digital Logic Lab Unit | CPE-EO2100

Feature/Function

Untitled Document ㆍVarious digital IC circuit experiments.
ㆍAdjustable to design various digital IC circuits.
ㆍSuitable for TTL IC and C-MOS IC circuit experiments with a built-in +5V and -5V power.
ㆍHexadecimal FND display with 2 digit number.
ㆍConvenient to keep and carry with designed a suitcase-form.

Specifications

Untitled Document A. DC Output : ＋5V, －5V 0.5A (Ripple 5mv Max.) Protection for overload
B. Number Display : 2 digits (Hexadecimal number indication)
1 2 3 4 5 6 7 8 9 A B C D E F
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
C. Indication Polarity : Anode / Cathode Selectable Common Mode
D. Clock Pulse Output : 1Hz, 10Hz, 1㎑, 100㎑ (High : 4.5V, Low : 0.2V approx.)
E. Logic SW : 5 Toggle SW (Bounceless Output), 1 Push SW (Positive & Negative Edge Output)
F. Control SW : 1 Push SW Floating Contact, Toggle SW
G. Protection : DC Overload Alarm & Indication
H. Buzzer : Low Power Driver (2V ~ 7V 1mA or Less)
I. Variable Resistance
1) 500[㏀] (1ea)
2) 10[㏀] (1ea)
J. Volt meter : Full scale 20[V] (DC)
K. Ampere meter : Full scale 1[A] (DC)
L. Breadboard : Socket Strip (630 Hole) 3EA, Bus Strip : 4ea
M. Input Power : AC 220V, 50/60Hz
N. Dimension : 130(H)×385(W)×260(D)㎜

Options/Accessories

Untitled Document ㆍExperiment Jumper wire : 1set
ㆍUser's manual: 1ea
ㆍPower cable : 1ea
