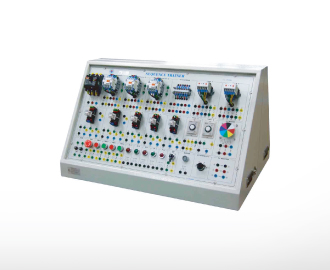

• Hands-on electrical sequence practices using various electrical components with electric contact
• Simulates real life components and power source that is being used in the field
• Designed to support connecting a PLC Trainer for diverse levels of applied experiments
• Ensures safety using insulated connection cables and insulated connection terminals

A. Power : Three-Phase AC 220V/60Hz
B. ELCB(Earth Leakage current Circuit Breaker) : 1ea
　1) Rated Current : 30A
　2) Rated Voltage : 1ø AC 220V/60Hz
　3) Rated Residual Current, I△n : 30mA
　4) Residual Non-Operating Current : 15mA
C. MC(Magnetic Contactor, 5a2b) : 3ea
　1) Coil Voltage/Current : AC 220V 60Hz / 41mA
　2) AC3 Ratings/IEC60947-4 : AC 240V/4.5kW/18A
　3) Auxiliary Contact : AC 240V/3A
D. EOCR (Electronic Over Current Relay, 1/2HP) : 2ea
　1) A mount of CT : 3CT (Tunnel Type)
　2) Current setting : 0.3 ~ 1.5A
　3) Trip Time Setting : 0 ~ 30sec
　4) Relay Control Voltage : AC 100~260V/60Hz
　5) Auxiliary Contact : AC 250V/3A (Resistive Load)
E. Relay, 4c : 2ea
　1) Coil Voltage/Current : AC 220V 60Hz / 6mA
　2) Contacting time : ≤ 20ms
　3) Rated Current : AC 220V/3A(R Load), AC 220V/0.8A(L Load)
F. Relay, 2c : 3ea
　1) Coil Voltage/Current : AC 220V 60Hz / 11.5mA
　2) Contacting time : ≤ 25ms
　3) Rated Current : AC 220V/7A(R Load), AC 220V/5A(L Load)
G. Time Relay, 60sec : 1ea
　1) Operating Type : On Delay
　2) Rated Power : AC 220V/60Hz/2.5VA
　3) Contact : AC 220V/1.5A (R Load)
H. Flicker Time Relay, 6sec : 1ea
　1) Operating Type : On Start
　2) Rated Power : AC 220V/60Hz/2.5VA
　3) Contact : AC 220V/2.5A (R Load)
I. Lamp, Green:2ea, Red:3ea : 5ea
　1) Operating Voltage : AC 220V
　2) Lamp : DC 6.3V
J. Buzzer(Operating Voltage : AC 220V/4VA) : 1ea
K. Push Button Switch, Non-Lock, Green:2ea, Red:2ea : 4ea
L. Emergency Switch(Output Contact Capacity : AC 250V/6A, 1a1b) : 1ea
M. Selector Switch : 1ea
N. Three-Phase Induction Motor : 1ea
　1) Operating Voltage : 3ø AC 220V/380V/25watt
　2) Motor Type : 4pole, Squirrel Cage Rotor, Y-Δ Starting
O. Fuse Holder & Fuse (5A) : 2ea
P. Terminals(6 ea) : 1ea
Q. Reactor(Motor starting function, 3ø AC 400V) : 1ea

ㆍAC power cable : 1ea
ㆍConnection cable(4ø) : 1set
ㆍUser's manual : 1ea
