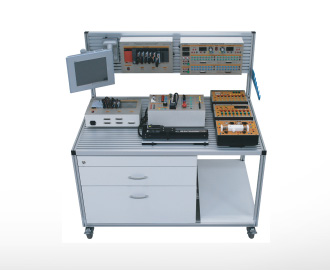

Modular PLC Application Trainer | CPS-3550U

Feature/Function

Untitled Document

Features
ㆍSet the input/output condition by various Simulation and Realistic PLC Experiment for the Automatic System.
ㆍBuilt-in DC24V for Power supply and supply the aluminum profiles to be easily attached the pneumatic components.
ㆍExperiment contents can be converted to the appropriate state to the industry by adding the required application module according to the user's demand. Trainees can easily operate the system by their design.

CPS-3550U can be connected with PLC which was made by LS Industrial Systems, MITSUBISHI, SIEMENS etc.. And variable experiments are available using additional special module for the training of advanced application technology for the professional courses.
This trainer was designed to experiment the Industrial Automation at the same time, and can be connected and used with Photovoltaic devices, electrical pneumatic / hydraulic trainer, sequences and other experimental devices and automation systems. Various Input/Output condition setting will help to proceed the realistic PLC experiment for the automatic system such as FMS etc.

Specifications

product

Specifications
ㆍPLC : LS, Mitsubishi, Omron, Siemens, AB, etc.
ㆍPLC communication and special unit

Structure	Aluminum profile frame, L-type panel structure
Training Panel (Top, Horizontal)	Panel Size : 800(W) x 605(D)mm
	Aluminum profile of the 25mm slot gap
	Removable and placement of practice module
Assistance Panel (Vertical)	Assistant Practice Panel Size : 740(W) x 155(H)mm
	Aluminum profile of the 25mm slot gap
	Removable and placement of practice module
Module Library	LPM-coated PB, 2-steps locking device
Wiring hanger	Attached side table, more than four holes
Removable wheels	Fixable wheels(Solid but move smoothly) 4ea
Size	800(W) x 605(D) x 1105(H)mm (height to top : 750mm)

Select Module Configurations

XGT PLC Module (CPS-3550X)
ㆍCPU Module : 1EA ㆍPOWER Module : 1EA ㆍINPUT Module : 2EA ㆍOUTPUT Module : 2EA ㆍPower Switch : 1EA ㆍControl Input : 2EA ㆍControl Output : 2EA
Melsec PLC Module (CPS-3550M)
ㆍCPU Module : 1EA ㆍPOWER Module : 1EA ㆍINPUT Module : 2EA ㆍOUTPUT Module : 2EA ㆍAD Module : 1EA ㆍD/A Module : 1EA ㆍPositioning Module : 1EA
XGT PLC Module (CPS-3625K)
ㆍCPU Module : 1EA ㆍPOWER Module : 1EA ㆍINPUT Module : 2EA ㆍOUTPUT Module : 2EA ㆍAD Module : 1EA ㆍD/A Module : 1EA ㆍPositioning Module : 1EA ㆍEthernet Module : 1EA
Melsec PLC Module (CPS-3625M)
ㆍCPU Module : 1EA ㆍPOWER Module : 1EA ㆍINPUT Module : 2EA ㆍOUTPUT Module : 2EA ㆍAD Module : 1EA ㆍD/A Module : 1EA ㆍPositioning Module : 1EA ㆍCC Link Module : 1EA
Demonstration System (CPS-3550U)
ㆍAC Input power : AC220V, 60Hz ㆍDC Output power : DC 0~24V, 0~2A Variable, DC 24V, 2A Fixed, DVM, DAM ㆍInput/Output Terminal : 32ea each, 25pin Connector 4EA ㆍA/D, D/A Simulator
Servo Motor Trainer (CPS-AT4430)
ㆍServo Motor(50W) : 1EA ㆍServo Actuator Unit : 1EA ㆍSignal Detection ㆍDetector ㆍTorque Level Analog ㆍControl Switch ㆍPosition Input ㆍPositioning Module
Touch Panel Module
ㆍLCD type : TFT Color LCD ㆍScreen size : 10.4” ~ 15” ㆍDsplay color : 65,536 Colors ㆍLuminance : 400cd/m2
Inverter Trainer (CPE-ER1010)
ㆍThree-phase inverter : 1HP(0.75KW) ㆍThree-phase induction motor : 3-phase AC 220V ㆍInput and Output devices
MITSUBISHI CC-Link (CPS-3625M2, CPS-3625M3)
ㆍCC-Link Input Module (CPS-3625M2) : 1EA ㆍCC-Link Output Module (CPS-3625M3) : 1EA

Options/Accessories

Untitled Document

Accessories
ㆍPower Cable : 1ea
ㆍConnection Cable(4Ø) : 1set
ㆍ25pin Connector Cable : 2ea
ㆍRS-232C Cable : 1ea
ㆍPLC Software : 1ea
ㆍUser’s Manual and Experimental Manual : 1ea
