Photovoltaic System Assembly & Disassembly Trainer

Feature/Function

Untitled Document

Features
• Miniaturized solar PV system using the artificial solar source
• Capable of performing off-grid and grid-tied practices
• Supports assembly and disassembly practices by the modular system structure

Specifications

Untitled Document

Specification
ㆍBase Panel (M00)
ㆍPV Cell-A Module (M01)
ㆍPV Cell-B Module (M02) × 4
ㆍLight Source Module (M03) × 2
ㆍDiode-A, B Module (M04-A, B)
ㆍCharging Controller Module (M05)
ㆍBattery Module (M06)
ㆍDC/AC Inverter Module (M07)
ㆍAC Lamp Module (M08)
ㆍAC Motor Module (M09)
ㆍAC Buzzer Module (M10)
ㆍDigital Meter Module (M11)
ㆍGrid Connected Inverter Module (M12)
ㆍElectricity Meter Module (M13)
ㆍFuse Module (M14)
ㆍVariable Register Module (M15)
ㆍShunt Module (M16)
ㆍShunt Module (M17)
ㆍDC Voltage Meter Module (M18)
ㆍDC Ampere Meter Module (M19)
ㆍAC Voltage Meter Module (M20)
ㆍAC Ampere Meter Module (M21)
ㆍAC Input Terminal block Module (M22)

Module List

Solar Power Module A-type : PV CELL-A (M01)		Solar Power Module B-type : PV CELL-B (M02)
- Cell size : 60(W) x 150(H)mm - Max. Power (Pm) : 1W - Max. Power Voltage (Vmp) : 12V - Max. Power Current (Imp) : 85mA		- Cell size : 120(W) x 300(H)mm - Max. Power (Pm) : 4W - Max. Power Voltage (Vmp) : 6V - Max. Power Current (Imp) : 660mA
Halogen Light Module : LIGHT SOURCE (M03)		Diode Module : DIODE-A, B (M04)
- Power : 300W - Power-supply : 220V 50/60Hz - Halogen linear lamp - Heat-resistant glass - Angle control available		- Size : 115(W) x 75(H)mm - Schottky barrier diode : 8EA - Max. Power Voltage (Vmp) : 40V - Max. Power Reverse Voltage (Vmp) : 40V - Max. Power Current (Io) : 5A
CHARGING CONTROLLER (M05)		BATTERY (M06)
- Size : 90(W) x 185(H)mm - Charging Controller - Normal Voltage : 12V - Boost Voltage : 13.5V(25℃), 2hr - Equalization Voltage : 14.8V(25℃), 2hr - Float Voltage : 13.7V(25℃) - Low voltage disconnect (LVD) : 11.4~11.9V (Controlled by state of charge) 11.0V (Controlled by voltage) - Load re-leads Voltage : 12.8V - Temperature compensation : -4㎷/Cell*k - Max. Input Power Current (Solar Panel) : 5/8/10/15/20A - Max. Load Power Current (Load) : 5/8/10/15/20A		- Size : 380(W) x 309(H) x 120(D)mm - Battery(12V, 12AH) : 1EA
DC/AC INVERTER (M07)		AC LAMP (M08)
- Size : 270(W) x 160(H)mm - Power (AC) : 250W - Frequency : 60Hz - Protection function : Over heating, Short circuit, Over load - Warnning function : Alram sign at battery low voltage and over heating		- Size : 123(W) x 69(H)mm - AC Lamp AC220V, 1W : 1EA

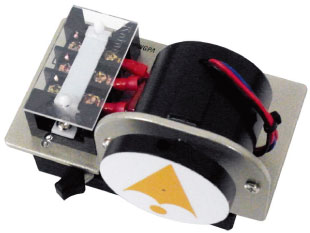

AC Motor (M09)		AC BUZZER (M10)
- Size : 115(W) x 69(H)mm - AC Motor AC220V, 5.3W Rotary Disk : 1EA - AC Motor Power Control Module : 1EA		- Size : 115(W) x 69(H)mm - Buzzer AC220V, 13.5W : 1EA
Grid Connected Inverter Module (M12)		Electricity Meter Module (M13)
- DC Input Voltage : 12V, 24V (10.8~30VDC) - Power Output : 250W (peak power : 300W) - Efficiency : 92% - Power factor : 0.99 - Output waveform : Sine wave - Frequency : 46~65Hz - Output voltage : 190~260VAC - MPPT function : Built-in - Built-in : Safety circuit of over current, over heating, inverse voltage		- Size : 130(W) x 130(L) x 220(H)mm - 1P2W - Current : 30(10)A - Voltage : 220V - Surface mounted gauge

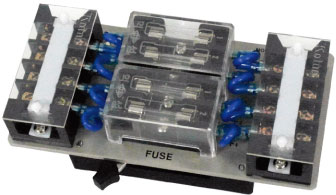

FUSE Module (M14)		Variable Register Module (M15)
- Fuse : 4EA - Rating : 250V 5A		- Resistance range : 0~50Ω - Max. Working Module : 50W

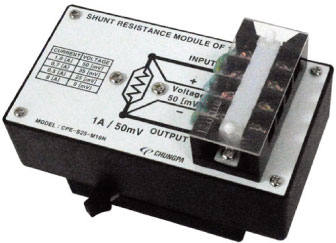

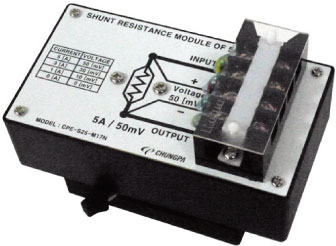

Shunt Module (M16)		Shunt Module (M17)
- Rating : 1A/50㎷		- Rating : 5A/50㎷

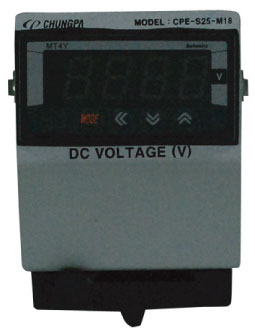

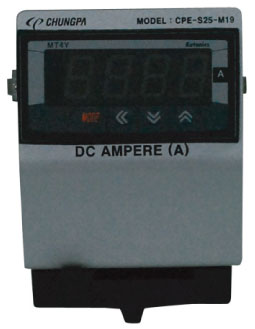

DC Voltage Meter Module (M18)		DC Ampere Meter Module (M19)
- Max. Measuring Input : DC500V - Max. Display Range : -1999 ~ 9999 - Hi/Low scale function - Communication : RS-485		- Max. Measuring Input : DC5A, AC5A - Max. Display Range : -1999 ~ 9999 - Hi/Low scale function - Communication : RS-485

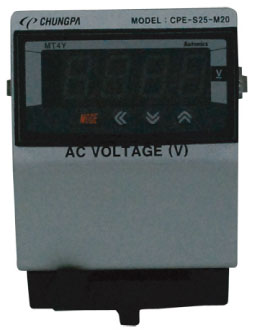

AC Voltage Meter Module (M20)		AC Ampere Meter Module (M21)
- Max. Measuring Input : AC500V - Max. Display Range : -1999 ~ 9999 - Hi/Low scale function - Communication : RS-485		- Max. Measuring Input : AC500V - Max. Display Range : -1999 ~ 9999 - Hi/Low scale function - Communication : RS-485

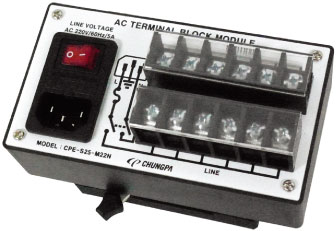

AC Input Terminal block Module (M22)
- AC 220V/ 5A - AC OUTPUT_L : 10ea - AC OUTPUT_N : 10ea

Options/Accessories

Untitled Document

STANDARD ACCESSORIES
• Power cord: 1ea
• Y-connection cable : 1set
• User’s guide manual : 1ea
• Experimental manual : 1ea

Practice examples

Untitled Document

Experimental contents
• Basic principles of solar power generation
• Electrical characteristic of solar PV modules
• I-V, P-V characteristics by distance of solar PV modules
• I-V characteristics and load practices according to series/parallel connection of solar PV modules
• Battery charge-discharge practices through the charging controller
• Power conversion through the off-grid inverter
• Power conversion through the grid-tied inverter
