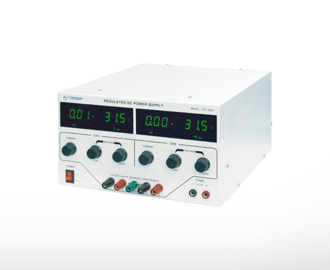

Regulated DC Power Supply
CPS-251S,303,305,3010,503,505,3032,3052
Feature/Function
Untitled Document
FEATURES
• Low ripple and stable output characteristics
• 3-digital meter indication
• Overload and overvoltage protection
• Voltage and current limit control
• Constant voltage (CV) and constant current (CC)
Specifications
product
SPECIFICATIONS
| Model |
CPS-251S |
CPS-3010 |
CPS-305 |
CPS-303 |
CPS-503 |
CPS-505 |
CPS-3032 |
CPS-3052 |
| Output Voltage / Current |
0~25V
0~1A
|
0~30V
0~10A |
0~30V
0~5A |
0~30V
0~3A
|
0~50V
0~3A |
0~50V
0~5A |
0~30V Dual
0~3A Dual |
0~30V Dual
0~5A Dual |
| - |
Fixed output 5V, 2A |
| Ripple Rejection |
≤2mVrms (5Hz~1MHz) |
| Regulation
|
Line
|
Less than 0.01%+3mV
|
| Load
|
Less than 0.02%+5mV
|
| Resolution
|
Voltage
|
0.1V Digital volt meter
|
| Current |
0.01A Digital ampere meter |
| Instant Return Time |
70㎲ (50% Load changing)
|
| Display
|
Voltage
|
3 Digital volt meter 1ea(2ea : CPS-3032, CPS-3052 only), CV Indicate LED
|
| Current |
3 Digital ampere meter 1ea(2ea : CPS-3032, CPS-3052 only), CC Indicate LED
|
| Protection |
Over voltage, Over load (Limit) |
| Fixed Output |
Voltage / Current |
-
|
5 Volt / 2 Ampere
|
| Line Regulation
|
Under 3mV
|
| Load Regulation
|
Under 10mV
|
| Ripple Noise
|
≤2mVrms
|
| Voltage Accuracy |
5V±0.25V
|
|
Input Power |
AC 220V, 50/60Hz |
| Size |
263(W)x150(H)x320(D)mm |
140(W)x150(H)x270(D)mm |
263(W)x150(H)x320(D)mm |
Options/Accessories
Untitled Document
STANDARD ACCESORRIES
• Power cord: 1ea
• Output cable: 2ea
• User’s guide manual: 1ea
