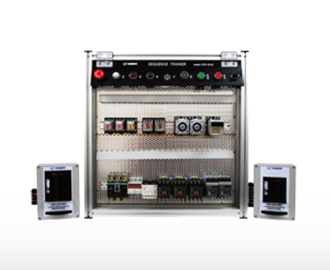

Sequence Control Trainer
CPS-3140/CPS-3143/CPS-3210
Feature/Function
Untitled Document
Features
• Effective sequence control experiments using various electrical components being used in the field
• Designed to practice of wiring through the terminal block with freely placing of parts on board (CPS-3140/CPS-3143)
• Scalability and easy maintenance various application modules can be added and configured
• Practice of PLC and sequence in conjunction with PLC
• The components of sequence circuit are removable to increase the educational effectiveness
• Product qualified by KS or IEC regulations
Specifications
product
| Control Panel Module |
| Structure of the control panel |
Front open and close type, symbol and name silk printing |
| Toggle switch : 2ea |
Contact capacity : AC 125V 10A, AC 250V 6A |
| Contact composition : 1a1b |
| Manually operated self-resetting push button: 4ea (red x 2ea, green x 2ea) |
Type : Ø22 round shape |
| Contact capacity : AC 250V 6A |
| Contact composition : 1a1b |
| Manually operated lever switch : 1ea |
Type : Ø22 round shape, 2-position manual single lever |
| Contact capacity : AC 250V 6A |
| Contact composition : 1a1b |
| Emergency switch : 1ea |
Contact capacity : AC 250V 6A |
| Contact composition : 1a1b |
| Lamp: 4ea (red x 2ea, green x 2ea) |
Type : Ø22 round shape |
| Operating power : AC 220V |
| Buzzer : 1ea |
Type : Ø22 round shape & continuous sound |
| Operating power : AC 220V 4VA |
| Fuse Holder Module : 3ea |
| Standard |
HY30C |
| Fuse |
30A |
| Timer (30sec) Module : 1ea |
| Operation |
OFF delay |
| Rating |
AC 220V / 60Hz / 2.5VA |
| Output contact capacity |
AC 220V 1.5A (Resistive load) |
| Timer (30sec) Module : 1ea |
| Operation |
ON delay |
| Rating |
AC 220V 60Hz / 2.5VA |
| Output contact capacity |
AC 220V/1.5A (Resistive load) |
| Magnetic Contactor Module(MC) : 2ea |
| Contact composition |
5a2b |
| Coil voltage / current |
AC 220V 60Hz / 41mA |
| Rated contact capacity |
AC 240V/4.5kW/18A |
| Assistance contact rating |
AC 240V/3A |
| Auxiliary Electromagnetic Contactor(MC) Module : 1ea |
| Contact composition |
1a3b |
| Coil voltage / current |
AC 220V 60Hz / 41mA |
|
| Rated contact capacity |
AC 240V / 4.5kW / 18A |
| Rated auxiliary contact |
AC 240V 3A |
| Electronic Overload Relay(EOCR, 1/2HP) Module : 2ea |
| Internal CT |
3CT (tunnel type) |
| Current range (adjustable) |
0.3 ~ 1.5A |
| Time setting |
0 ~ 30 seconds |
| Operating power |
AC 100~260V 60Hz |
| Rated contact capacity |
AC 250V 3A (Resistive load) |
| Counter Module : 1ea |
| Power |
AC 100 ~ 240V 60Hz |
| Output contact capacity |
AC 250V 3A (Resistive load) |
| Display |
Digital 4 digits |
| Preset setting |
4 digits digital switch |
| PLC Module : 1ea |
| Input power |
AC 100 ~ 240V 60Hz |
| Input contact |
DC 24V 6 points |
| Output contact |
Relay output 4 points |
| Built-in download port |
|
| Processing speed |
0.1㎲/step |
| Program capacity |
10k step |
| 20P Terminal Module: 1ea |
| Structure |
Two-stage 20 points |
| 10P Terminal Module: 1ea |
| Structure |
Single-stage 10 points |
| Relay Module |
| Relay Module 8-PIN |
2ea |
| Relay Module 11-PIN |
2ea |
| Relay Module 14-PIN |
2ea |
| Base Panel : 1ea (* Select Type A, B or C) |
| Type of base panel |
Type A: Aluminum profi le base (CPS-3140) |
| Type B: Punching plate base (CPS-3143) |
| Type C: Bakelite base (CPS-3210) |
| Size: 800(W) x 600(D)mm |
| Rubber feet: 4ea |
Options/Accessories
Untitled Document
Accessories
• Power cord : 1ea
• Connection cable (Y-terminal type) : 1set
• RS232C cable (for PLC download) : 1ea
• User’s manual & Experimental manual : 1eat
